2.0版本快速集成

DaxiMap提供了一体化导航SDK,方便用户快速集成到自己的应用中,包括了地图浏览，定位，POI搜索，路径规划，室内外一体化导航，语音引导，组队等功能

下载SDKDemo#

压缩包包含了库和使用示例

下载SDKDemo

加入依赖包（jar）#

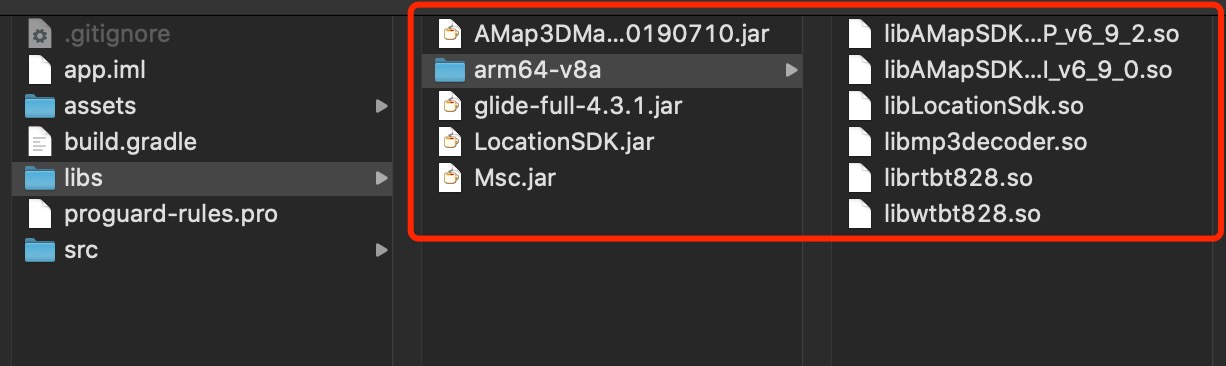

在lib目录中的加入jar包和so都 avatar

修改gradle文件#

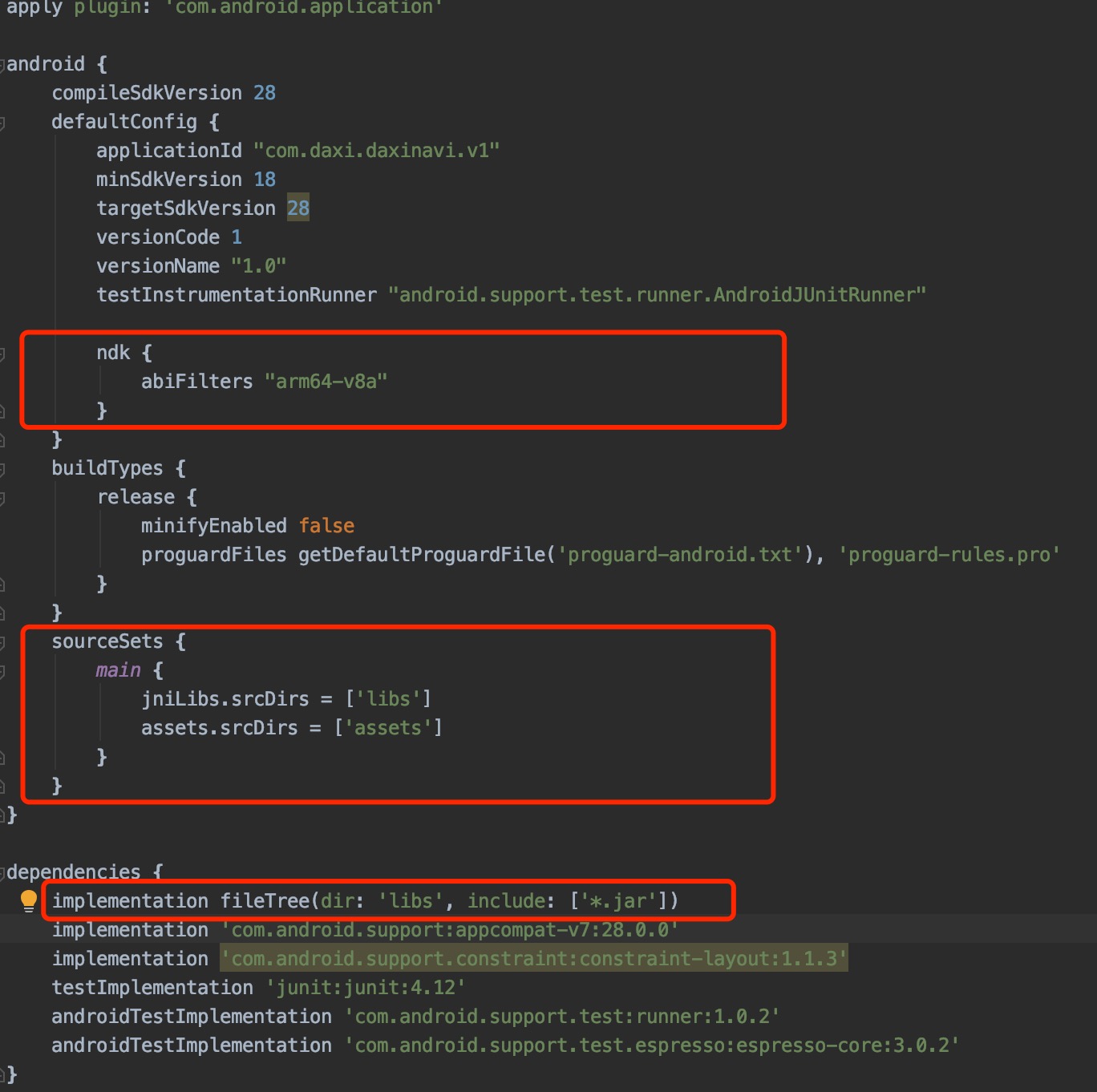

在build.gradle文件中加入如下内容 avatar

添加所需权限#

使用DXMapSDK需要添加读写权限,网络访问权限,设置修改权限，相机访问权限（扫描二维码）等在AndroidManifest.xml中添加以下内容

<uses-permission android:name="android.permission.INTERNET" />
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
<uses-permission android:name="android.permission.ACCESS_WIFI_STATE" />
<uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" />
<uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION" />
<uses-permission android:name="android.permission.BLUETOOTH" />
<uses-permission android:name="android.permission.BLUETOOTH_ADMIN" />
<uses-permission android:name="android.permission.BLUETOOTH_SCAN" />
<uses-permission android:name="android.permission.READ_PHONE_STATE" />
<uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE" />
<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
<uses-permission android:name="android.permission.CHANGE_WIFI_STATE" />
<uses-permission android:name="android.permission.CHANGE_NETWORK_STATE" />
<uses-permission android:name="android.permission.WRITE_SETTINGS" />
<uses-permission android:name="android.permission.VIBRATE" />
<uses-permission android:name="android.permission.WAKE_LOCK" />
<uses-permission android:name="android.permission.RECORD_AUDIO" />
<uses-permission android:name="android.permission.FOREGROUND_SERVICE" />
<uses-permission android:name="android.permission.CAMERA"/>
<uses-permission android:name="android.permission.FLASHLIGHT"/>

申请高德token#

一体化导航中用到了高德地图，需要去高德官网lbs.amap.com去申请apikey 申请后在AndroidManifest.xml文件中加入

<service android:name="com.amap.api.location.APSService"></service>
<meta-data
    android:name="com.amap.api.v2.apikey"
    android:value="这里填入Amap key" />

其他注意#

在application项目中要加入android:usesCleartextTraffic=true

<application
    android:allowBackup = "true"
    android:icon="@drawable/ic_launcher"
    android:usesCleartextTraffic="true"
    android:label="@string/app_name">

加载地图#

public class MainActivity extends FragmentActivity {
    private NoScrollViewPager viewPager;   //翻转页viewpager
    private List<Fragment> mFragments = new ArrayList<Fragment>();
    private FragmentPagerAdapter mAdapter;

    public static String strBDID = "B000A11DHF";                                                            //默认BDID
    public static String strToken = "xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx"                                       //这是DaxiMap Token
    public static String appConfigUrl = "https://map1a.daxicn.com/configServer/appConfig?type=zip&token=";  //服务地址
    public static boolean isShowBuild = true;   //当前Token中有多个建筑，且当前位置不在某个建筑内部是，是否显示选择建筑列表

    public static final String network_error = "当前网络不稳定，请稍后再试！";
    public static final String data_error = "当前网络不稳定，请稍后再试！";
    public static final String data_exist = "数据已下载";
    public static final String data_download = "数据已更新";
    public static final String data_updating = "数据更新中";

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        if(savedInstanceState!=null){
            return;
        }
        mContext = this;
        setContentView(R.layout.activity_main);
        viewPager = (NoScrollViewPager) findViewById(R.id.id_viewpager);
        //在android 6.0以上的系统中地图需要动态申请权限
        LocationSDK.requestEssentialPermissions(this, new DXPermissionListener(){
            @Override
            public void hasPermission(List<String> granted, boolean isAll){
                if(isAll){
                    initLocationSDKWithUIThread();
                }
            }
        });
    }

    public void initLocationSDKWithUIThread(){
        final LocationSDK locationSDK = LocationSDK.getInstance();
        locationSDK.setParam("simulate", "false");
        locationSDK.setParam("locationSDK.setParam("Token", strToken);", "true");
        locationSDK.setParam("wbrs", "true");
        locationSDK.setParam("mainCss", "main_blue");
        locationSDK.setParam("Token", strToken);
        locationSDK.setParam("appConfigUrl",appConfigUrl);

        // 初始化SDK
        locationSDK.InitWithApp(this, null);
        // 设置Listener
        locationSDK.setLocationSDKListener(new DXLocationSDKListener(){
            // 当内部点击了返回或者点击了物理返回键的时候
            @Override
            public boolean onPageGoBack(int pageCount){
                // TODO Auto-generated method stub
                if(pageCount == 0){
                    finish();
                }
                return false;
            }

            // 当匹配建筑的时候
            @Override
            public void onMatchBuilding(boolean isSuc){
                if(!isSuc){
                    Log.e("" , "building code error");
                    finish();
                }
            }

            // 当定位成功并确定在某一个建筑中或者某一个城市的时候
            @Override
            public void onBuildingDecided(List<DXBuildingInfo> bdList) {
                LocationSDK.getInstance().dismissGifWindow();
                if(!isShowBuild){
                    locationSDK.Initialize(strBDID);
                    return;
                }

                if(bdList.size() == 1){
                    DXBuildingInfo bdInfo = bdList.get(0);
                    locationSDK.Initialize(bdInfo.getBdid());
                    return;
                }else if(bdList.size() > 1){
                    List<String> buildingNameList = new ArrayList<String>();
                    for(int i = 0; i < bdList.size(); i++){
                        buildingNameList.add(bdList.get(i).getCn_name());
                    }
                    final List<DXBuildingInfo> tempBDList = bdList;
                    locationSDK.showSelectDialog("请选择建筑",buildingNameList, new DXSelectDialogListener(){
                        public void onSelectChanged(int selectIndex){
                            if(selectIndex >= 0){
                                locationSDK.Initialize(tempBDList.get(selectIndex).getBdid());
                            }else{
                                finish();
                            }
                        }
                    });
                }else{
                    Toast.makeText(mContext, "匹配建筑失败，将自动进入" + strBDID, Toast.LENGTH_SHORT).show();
                    locationSDK.Initialize(strBDID);
                }
            }

            // 当定位模块初始化时候
            @Override
            public void onLocationManagerInit(DXIntegratedLocationManager lm) {
                DXAMapExtension.getInstance().createAMapLocation(lm);
            }

            // 当地图模块初始化时
            @Override
            public void onMapControllerInit(DXFactoryManager fm) {
                DXAMapExtension.getInstance().createAMapController(fm);
            }

            // 当数据状态变化的时候调用
            @Override
            public void onMapConfigDataStateChanged(Context context, int state) {
                if (state == LocationSDK.DATA_NOT_EXIST) {
                    Toast.makeText(mContext, data_error, Toast.LENGTH_SHORT).show();
                    finish();
                } else if (state == LocationSDK.DATA_LOAD_FROM_LOCAL) {
                    Toast.makeText(mContext, data_exist, Toast.LENGTH_SHORT).show();
                    locationSDK.showMainPage("");
                } else if (state == LocationSDK.DATA_UPDATE_FROM_SERVER) {
                    Toast.makeText(mContext, data_download, Toast.LENGTH_SHORT).show();
                } else if (state == LocationSDK.DATA_UPDATING) {
                    Toast.makeText(mContext, data_updating, Toast.LENGTH_SHORT).show();
                }else if (state == LocationSDK.DATA_UPDATE_INIT_FINISHED) {

                }else if (state == LocationSDK.NETWORK_CONNECTING_ERROR) {
                    Toast.makeText(mContext, network_error, Toast.LENGTH_SHORT).show();
                    finish();
                }
            }

            // 当Share按钮被按下时
            @Override
            public void onShareBtnClicked(String shareURL, HashMap<String, String> params) {
            }

            // 当更换建筑按钮被按下时
            public void onChangeBuildingBtnClicked(){
            }

            // 当位置更新的时候
            @Override
            public void onPositionChanged(DXLocationPoint locationPoint){
            }

            // 当进入某一个区域的时候
            @Override
            public void onDidEnterRegion(String geoName){
                String toastText = "进入"+geoName;
                Toast.makeText(mContext, toastText, Toast.LENGTH_SHORT).show();
            }

            // 当离开某一个区域的时候
            @Override
            public void onDidExitRegion(String geoName){
                String toastText = "离开"+geoName;
                Toast.makeText(mContext, toastText, Toast.LENGTH_SHORT).show();
            }

            // 当消息更新的时候
            @Override
            public void onMessageUpdate(int code, String msg){
                Toast.makeText(mContext, msg, Toast.LENGTH_SHORT).show();
            }
        });
        // 开始定位，并根据定位数据自动选择进入合适的建筑
        LocationSDK.getInstance().startBuildingDecided();

        // 将当前的Fragment加入到某一viewPager中
        mFragments.add(locationSDK.getRootFragment());
        mAdapter = new FragmentPagerAdapter(getSupportFragmentManager()) {

            @Override
            public int getCount() {
                return mFragments.size();
            }

            public void destroyItem(ViewGroup container, int position, Object object) {
            }

            @Override
            public Fragment getItem(int arg0) {
                return mFragments.get(arg0);
            }
        };
        viewPager.setAdapter(mAdapter);
    }
}
